Row-level security (RLS) with Power BI can be used to restrict data access for given users. Filters restrict data access at the row level, and you can define filters within roles.


You can configure RLS for data models imported into Power BI with Power BI Desktop. You can also configure RLS on datasets that are using DirectQuery, such as SQL Server. For Analysis Services or Azure Analysis Services lives connections, you configure Row-level security in the model, not in Power BI Desktop. The security option will not show up for live connection datasets.


There are 2 main types of RLS:

  • Dynamic RLS
    • Using the variable "userprincipalname()" and a mapping of which for example dimensions a user has access to in a separate table.
    • We strongly prefer Dynamic RLS
    • Machine generated alternative text:
x
Manage roles
Roles
Data Deparment
Tables
CUSTOMER TYPES
CUSTOMERS
CUSTOMERS GS ACCOUNTANT I
CUSTOMERS GS CUSTOMER RES
CUSTOMERS GS PAYROLL ACCO
DEPARTMENTS
EMPLCYEE TIME
MPLOYEES
Table filter DAX expression
ERAIL] =
  • Static RLS
    • Hard coding RLS to "Roles" and then in Power BI Service assigning users to roles.
    • Machine generated alternative text:
x
Manage roles
Roles
Tables
Deparment
CONTACTS
userprincipalname
CUSTOMER TYPES
CUSTOMERS
CUSTOMERS GS ACCOUNTANT I
CUSTOMERS GS CUSTOMER RES
CUSTOMERS GS
pAYROLL ACCO
ID
EPARTMENTS
Table filter DAX expression
NAME)


Before you set up RLS:

  1. Make sure you have a BI Book Premium Analytics Licence (Grants access to Power BI Service)
  2. Open your Power BI model in Power BI Desktop and import a table containing the users and the roles you want the users to have. The table can come from BI Book Dataroom, MS Teams or any other source.
    1. Role is not necessary if user rights are contained in the underlying data (for example time entries)


Setting up RLS:

  1. Open your Power BI model in Power BI Desktop and add the role to the user table you want.
    1. Manage Roles
    2. Create a new role
      1. Select the table you want to apply the filtering on
      2. Write the dax expression like this: [YOUR_FILTER_COLUMN_NAME]=userprincipalname()
      3. Machine generated alternative text:
x
Manage roles
Roles
Data Deparment
Tables
CUSTOMER TYPES
CUSTOMERS
CUSTOMERS GS ACCOUNTANT I
CUSTOMERS GS CUSTOMER RES
CUSTOMERS GS PAYROLL ACCO
DEPARTMENTS
EMPLCYEE TIME
MPLOYEES
Table filter DAX expression
ERAIL] =
  2. Validate the Relationships that you applied the security filters on.  We do not assume responsibility for wrongly configured RLS.
  3. Validate desired result using a username:
    1. Machine generated alternative text:
x
View as roles
O None
Other user
O Data Deparment
userprincipalname
Cancel


Example models:

  1. Example model:
    1. Machine generated alternative text:
Dimensionsltems 1
Dimensionltem
Expand v
General Ledger
AccountDimensionKey
AccountDimensionName
AccountNumber
Company * Account Dimen...
Company * Currency
Company
CompanyName
De script ion
Dimension I
Collapse A
a Oikeudet
Dimension Item
Email
Collapse A
Cardinality
Many to one (f: I)
Make this relationship active
Assume referential integrity
Käyttäjät
Email
Collapse A
Cross filter direction
Both
ply security filter in both directions
  2. One way relation + example function:
    1. Machine generated alternative text:
Manage roles
Roles
erPrincipaIName
Tables
DimensionFiIterList
Dimensions For Analysis
-mensionsltems I
Dimensionsltems 2
x
Table filter DAX expression
[Dimensionltem] IN SELECTCOLUMNS (
FILTER ( 'Oikeudet', RELATED ( 'Käyttäjät' [Email] )
USERPRINCIPALNAME ()
"Dimensionltem" , [Dimensionltem)

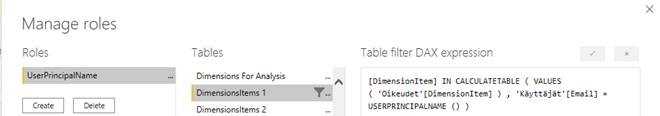

  3. RLS without a relationship in relationship view:
    1. Machine generated alternative text:
Manage roles
Roles
luserpnpa
Tables
Dimensions For Analysis
ID,
-mensionsltems I
Dimensionsltems 2
x
Table filter DAX expression
[Dimensionltem] IN CALCULATETA8LE ( VALUES
( 'Oikeudet [Dimensionltem] )
' Käyttäjät ' [Email]
USERPRINCIPALNANE () )



More instructions can be found on Microsoft's page here: : https://docs.microsoft.com/en-us/power-bi/admin/service-admin-rls
